Power Play - The Power Cylinder

 Here we are in day 16 of the US Federal shutdown and we all know it's about power and control.  About steering the system in particular direction despite what the subjects want.

Speaking of power steering control, I have a pretty, newly rebuilt, control valve but nothing yet to subject to it's control and what good is control if you have nothing to control?   Enter the power cylinder.  This is the hydraulic ram that forces the center link to one side or the other depending on which way the steering wheel is turned.  Unfortunately, there's isn't much that can be serviced on these power cylinders.  You can replace the boots and seals and that's it.  You can't refurbish the plunger inside the cylinder or even the center link ball stud on the back end.  So, that's all that's really needed on this task so I'll go over it here.

 The first thing is the removal of the center link ball stud boot.  This just involves removing the clamp and working the boot back up and over the end of the cylinder.  Mine was badly hardened and pretty much just split.  Sadly there's also no way to replace the grease in the ball stud socket.  I pretty much left it alone because I didn't want to remove the grease in there with no way to replace it.

Next, I gently supported the cylinder in my bench vice and removed the nut from the end of the cylinder arm and worked the old bracket and rubber bushings off the threads followed by the remnants of the flexible dust boot.

Clamp removed, ready to pull off the boot.

Dryed out and cracked.

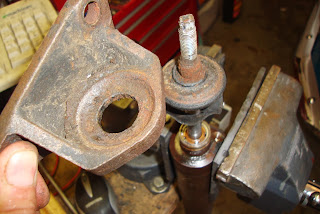

Removing the frame bracket.

It's off!

I then took the cylinder to my brass wire grinder wheel and removed the years of rust and grime.  When the dust settled, what I was rewarded with was the very prominent dent in my power cylinder.  I hadn't noticed it earlier due to the dirt and grime.  I ran the arm back and forth and felt an obvious bind in the action so this cylinder is officially unusable.  I could buy a refurbished cylinder for around $140 but I already had the seal kit and replacement boots and bushings plus I had an extra power cylinder.  The one that I had received with the package deal I'd bought for my disk brakes over four years ago.  Part of that deal was the power steering assembly from a 71 Ranchero.  The other parts in the set were not usable (other than some control valve parts) but the power cylinder looked pretty much identical so I set to work tearing it down in the same way I had done the previous one.   Sadly, this one too had some small dings in the cylinder housing.  I panicked a little as I tested the action of the arm and could feel no binding so I shrugged and forged ahead.

Aw crap... a dent.  This cylinder is unusable.

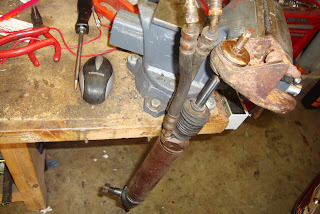

Removing the 71 Ranchero cylinder frame bracket.

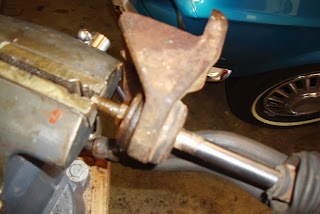

It helped to clamp the flattened end of the arm in a vice to loosen the nut.

The bracket removed.

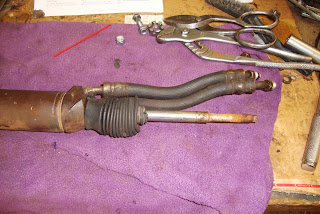

The cylinder ready to be refurbished.  Also has some dings but is still usable.

The replacement of the seals is a pretty straight-forward removal and re-insertion of a stack of 7 parts, each included in the rebuild kits available.  The whole stack is held in with a single snap ring.  The rest can be worked out of the housing with a dental pick or similar.

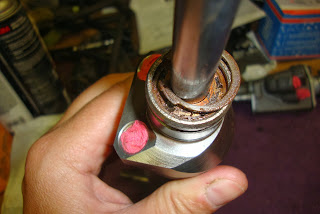

Removing the snap ring and "scraper"

The rubber wiper

Removing the rubber wiper

The retainer

Removing the retainer.  This was actually kind of difficult.

Seal #1
Insert between Seal 1 and Seal 2

Seal 2 visible.  This one was tough to remove.  I had to drill little holes in it to pull it out.

Whew, got them all out.

The abyss

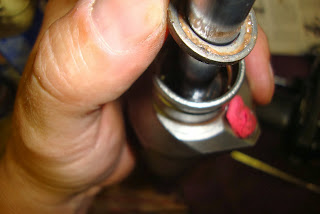

Seal 1 going in

I used a length of pipe to gently seat the seal

Insert between seal 1 and seal 2

Seal 2 going in.

Seal 2 in

Retainer inserted

Rubber Wiper

Scraper

Snap ring

The new center link ball stud boot can be lubricated up and slid and stretched over the end of the power cylinder (which I had just cleaned up with the wire wheel and painted with several coats of clear lacquer). The end boot clamp can then be installed.  Remember to slide the clamp onto the cylinder before the boot.  I hadn't and had to remove the boot and do it again.

Work it over the end.  Oops.. is that the clamp sitting on the bench there?

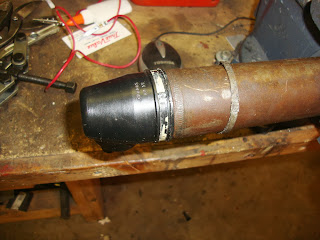

Boot and clamp installed.

The flexible arm boot was then slid down over the arm.  It helped to lubricate the small end.  The large end just has a lip that catches in a groove on the cylinder housing without a clamp.  I re-punched 4 holes in the large end of the boot to allow air to flow in and out like an accordion.  I then placed and tightened the arm clamp.

Flexible boot in position

End clamp in place, testing extended position.

Testing compressed position.

Finally, the frame bracket could be affixed to the end of the arm via the stack of plates and rubber bushings tightened on with a nut followed by a lock nut.

Control valve and power cylinder.

I then replaced the two hose seats in the same manner as I had done for the control valve.  I coated a 1/4 20 tap with grease to hold onto the chips while I threaded the old hose seats, screwed in a 1/4 20 bolt and yanked them out.  I then lightly pushed in the new hose seats.

Grease up a tap and tap the seat.

Thread in a 1/4" bolt

Pop out the seat.

Awaiting a new seat.

New seats in installed.

This task was then complete.  Now, if only there was a way to pressurize the power steering fluid... hmmm...
