Sunday, February 21, 2010

Do Overs!

Well, I sealed the seams but the seams seem unseemly.  The seams that will be hidden under body panels are okay but a few seams will be seen so I chose to redo those seams.   And, since the weather was 60 degrees and sunny, I decided also to revisit my old friend, media blast issue #4.

However, I opted to start with the do over of the seam sealer.  I was particularly unhappy with how the door jambs turned out as you can see here:


I started out by scraping away the new sealer:

Then I ground the remnants away with my drill and wire brush. I didn't use the angle grinder wire wheel on this because it would have been a little too aggressive with the new primer:

Then lacquer thinner to clean the area and then a new coat of primer:

Now that the door jamb is fresh as a daisy, it was time to lay down a new bead of sealer.  This time I chose NAPA brand firm gray sealer:

The tools of the trade for me this time were an acid brush and a 3/4" strip of a previously 3" wide rubber body filler spreader:

I dipped the spreader in lacquer thinner and squeegied the bead of sealer while following along the seam at a slight angle like a snow plow:

I did the other side the same way.  The rubber spreader worked so well, I did away with the acid brush altogether.  It works best if you keep it soaked in lacquer thinner:

I then followed a similar procedure along the seam between the rocker panel and the rear quarter:



Again, between quarter and deck lid filler panel:

Before:

After:

And at the rear trunk corner seams:
Before:

After:

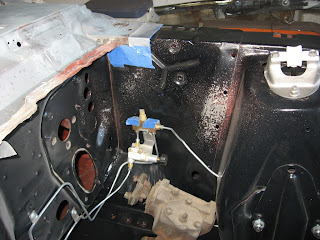

Finished with the seam sealer, I moved on to the repaint of the damaged section of the engine compartment where the media blaster had burned through some of the paint:


I disassembled the area, masked it off, and sanded damaged areas down until I couldn't feel bumps and then sanded some more with a 300 grit.  I scuffed all of the areas where I would apply new paint and cleaned the area with lacquer thinner:

I then repainted the area with PPG Deltron DBC9295.

The result looks okay to my noob-vision:

I'm not 100% sure if I should have reprimed the area first.   I didn't do my usual research on this task before doing it.  I hope it doesn't come back and bite me in the ass but it probably will.  It's hidden quite well behind the steering box, brake M/C, and distribution block but that could be a bad thing as well because if the paint does go bad, I'll have hell to pay to touch it up again.
